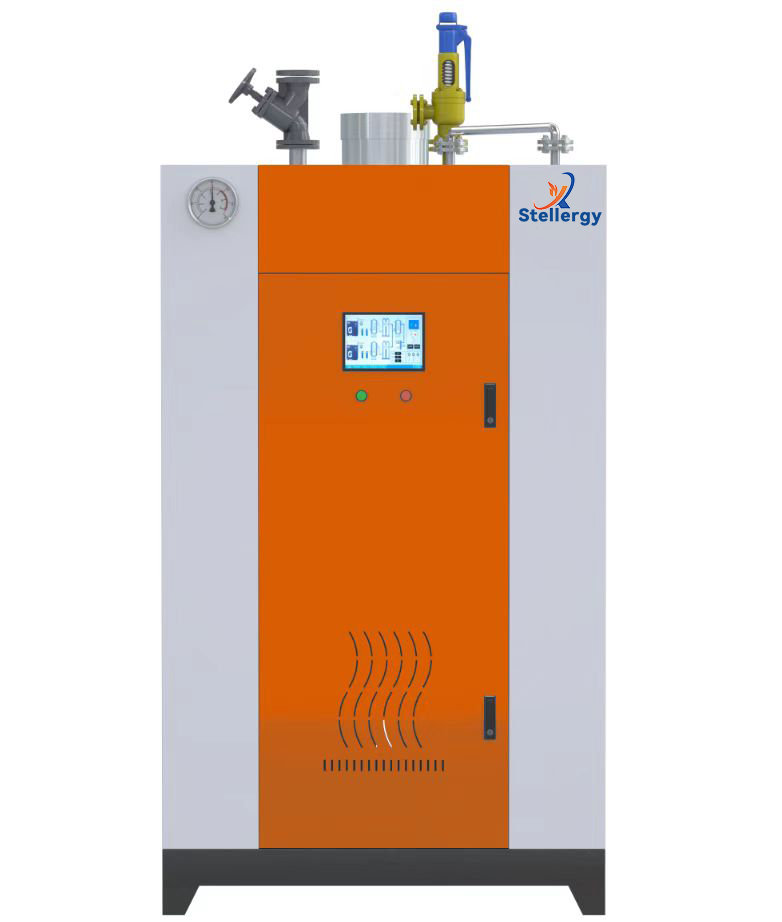

Stellergy Steam Generators

The high-efficiency, user-friendly steam solution your operation needs. Engineered for exceptional performance, it delivers unmatched reliability and compliance, reaching NOx levels below 20mg/m³. From a cold start, it produces steam in minutes — not hours. Its compact design maximizes your space, allowing you to boost capacity without expanding your footprint.

Smart. Efficient. Ready to Perform.

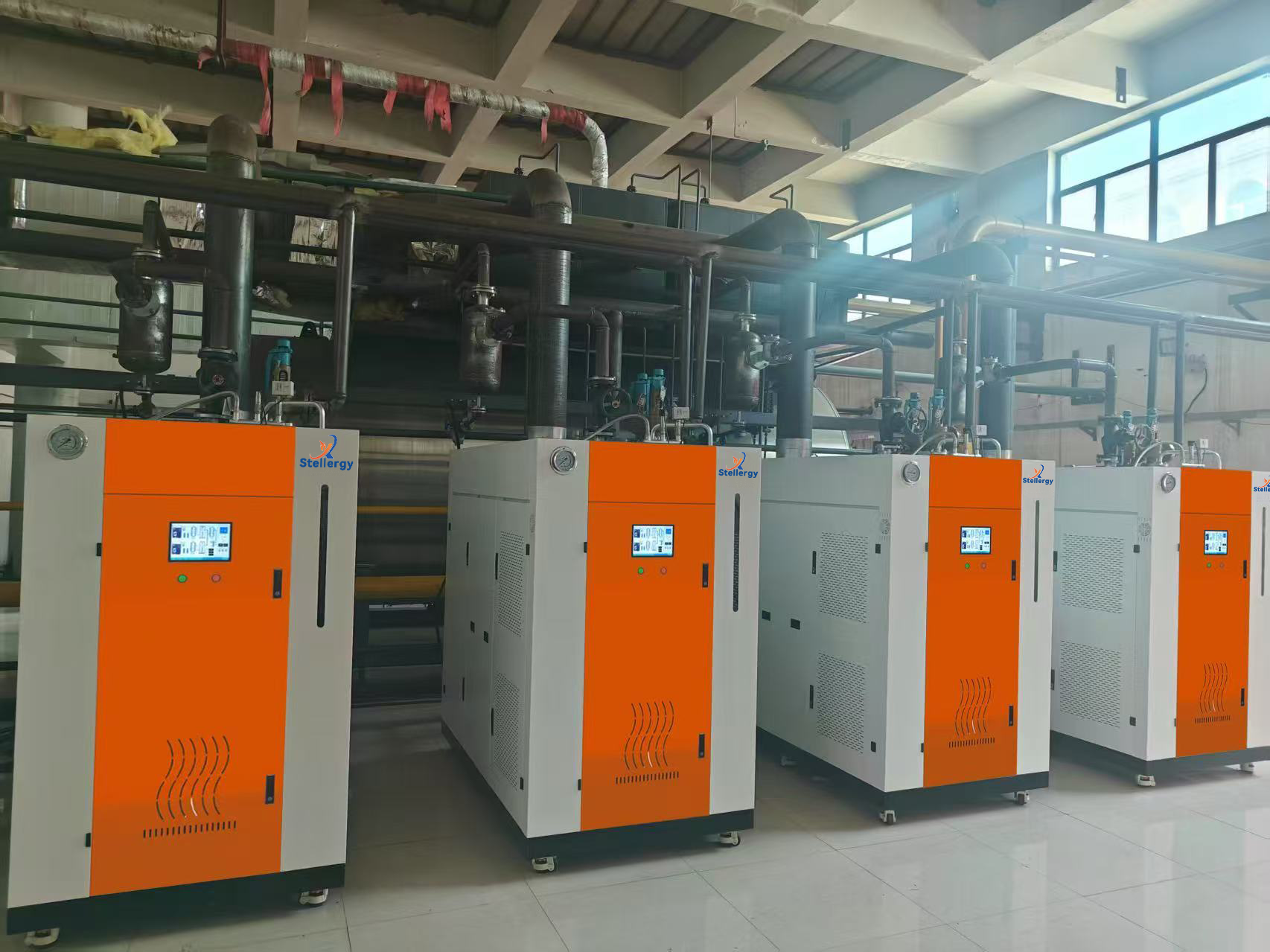

Stellergy Modular Steam System (MSS)

Our generators are engineered to work in perfect harmony. Build a custom, future-proof steam plant that grows with your business. Add or remove units seamlessly to match your exact demand, and enjoy inherent backup that eliminates costly downtime. It's the smartest way to ensure efficiency and peace of mind.

FIVE 1.5t/h GENERATORS = 7.5 TONS OF STEAM PER HOUR

  • ON-DEMAND STEAM

    READY IN SECONDS, NOT HOURS

    Stellergy steam generators deliver full steam output in just 30 seconds from cold start. Produce steam precisely when needed—eliminating energy waste during standby and establishing new benchmarks for industrial efficiency.

  • MODULAR SCALABILITY

    GROW WITH YOUR DEMAND

    Our Modular Steam System (MSS) enables flexible configuration to match your evolving production needs. Seamlessly integrate additional units as your operations expand, creating a future-proof steam solution that adapts to your growth.

  • BUILT-IN REDUNDANCY

    n+1 redundancy

    Unlike traditional single-boiler setups, our modular design employs multiple compact units working in unison. This creates inherent N+1 redundancy—ensuring uninterrupted operation while reducing total system capacity requirements and maximizing space utilization.

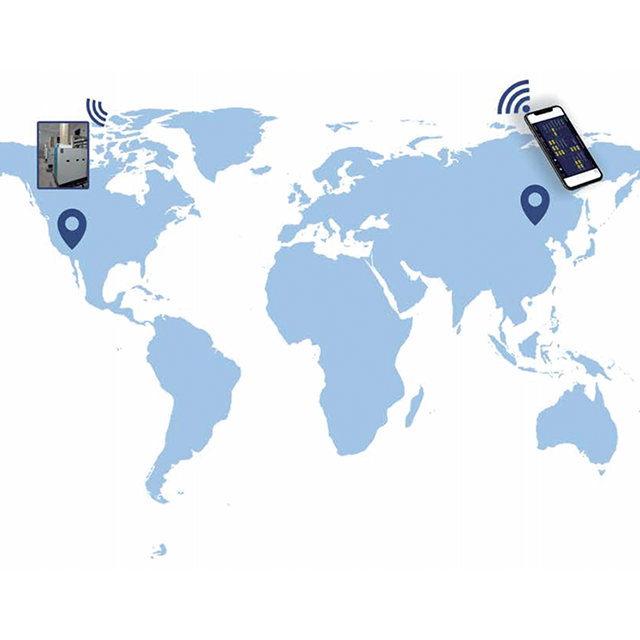

Remote Control Technology

  • Safety Alert: Monitors equipment status in real-time, providing immediate alerts upon detecting abnormalities to notify management promptly.
  • Real-Time Monitoring: Key parameters, including steam output pressure, combustion status, and water level conditions, are displayed in real-time, enabling management to stay fully informed of equipment status at all times.
  • Remote Operation: Users can remotely start/stop the equipment and adjust pressure settings, ensuring more convenient and efficient control.

Fully Premixed Surface Combustion Technology

Air and gas are thoroughly premixed before entering the combustion chamber, enabling precise air-fuel ratio control to reduce flue gas NOx emissions. The surface combustion method ensures more uniform heat distribution across the furnace body and higher heat transfer efficiency.

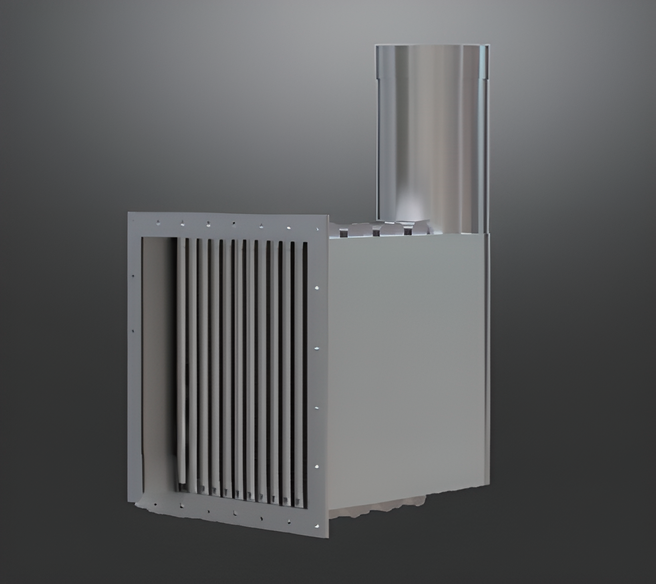

High-Efficiency Condensing Technology

Utilizing a SUS444 stainless steel finned condenser, this technology fully captures waste heat from flue gases to preheat the base water temperature while reducing exhaust gas temperatures below 60°C. This achieves exceptional thermal efficiency exceeding 101%, significantly enhancing equipment energy-saving performance.

Through-flow Steam Generation

This through-flow structure creates a smaller water volume, reducing safety risks and preheating energy consumption. It enables more efficient heat transfer for instant steam on demand, delivering faster operation and greater energy savings.

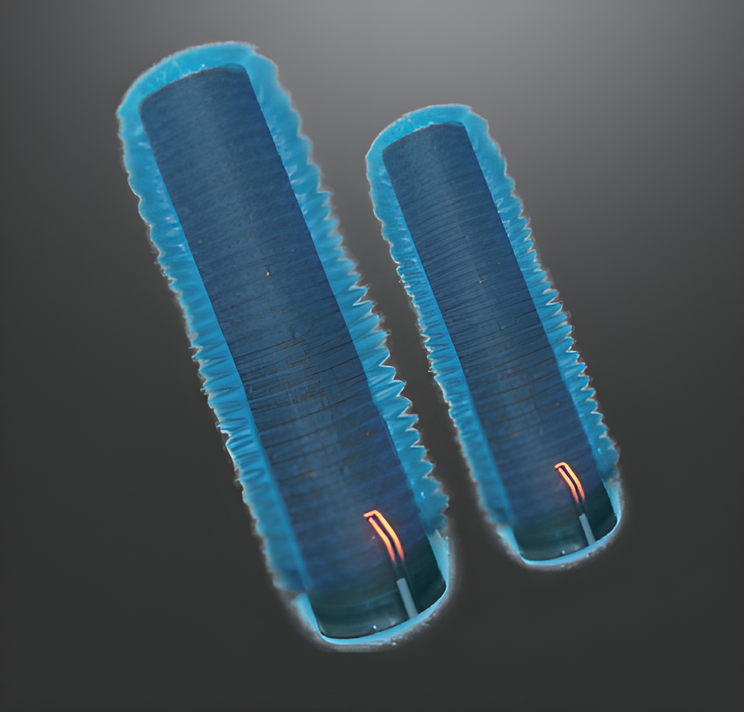

Heat Retention Wall Technology

This system creates a light and heat reflective barrier, enabling 360° radiant heat absorption by the fin tubes. It generates turbulent flow around the outer coil for secondary heat capture, while integrated flame baffles reduce flue gas velocity to maximize heat exchange efficiency.

Product Specs

Parameters Units LSS0.5-1.0-Q LSS1.0-0.8-Q LSS1.2-0.8-Q LSS1.5-0.8-Q
Rated Evaporation Capacity kg/h 500 1000 1200 1500
Rated Steam Pressure bar 10 8 8 8
NOx Emissions mg/Nm³ < 30 < 30 < 30 < 30
Thermal Efficiency % 101.29 100.54 100.54 100.23
Total Power Consumption kW 4 5 5.5 8
Power Supply V/Hz 400V/50Hz 400V/50Hz 400V/50Hz 400V/50Hz
Gas Consumption Nm³/h 36-40 73-78 87-92 109-115
Suitable Gas Types / Natural Gas & LPG Natural Gas & LPG Natural Gas & LPG Natural Gas & LPG
Gas Pressure mbar 40-60 40-60 40-60 40-60
Flue Gas Temperature ℃ 40-60 40-60 40-60 40-60
Water Capacity L < 30 < 50 < 50 < 50
Steam-up Time s 30 30 30 30
Steam Outlet DN 32 40 50 65
Safety Valve Outlet DN 25 25 32 40
Water Inlet Connection DN 32 40 40 40
Blowdown Connection DN 25 32 32 32
Gas Inlet Connection DN 40 40 40 50
Flue Gas Outlet mm 160/168 250/273 250/273 250/273
Steam Temperature ℃ 180 170 170 170
Overall Dimensions mm 1900×950×1800 2300×1200×2130 2300×1200×2130 2300×1200×2130
Gross Weight kg 900 1580 1730 1800
Ignition Method —— Scaling Arc Ignition
Exhaust Method —— Forced Air Purge
Combustion Method / Fully Premixed Combustion
Boiler Material / Dedicated boiler steel Q245R + High-performance alloy steel 12Cr1MoVG
